Bring your coating project to the next level with the 10QX coating robot.
Ideal for storage tanks, drydocks, and offshore coating applications.
Building on the success of our 10Q robot, we introduce a new generation of robotic coating technology: the 10QX.
A semi-autonomous magnetic coating robot featuring Qlayers’ patented spray shielding system, driving vertical lanes, equipped with a 2k paint pump, operated
through wireless remote control.
The 10QX system consists of the Qlayers paint system (QPS) and the crawler robot — the 10QX, forming a fully integrated industrial coating solution.
The 10QX is designed to deliver precise, consistent coating with unmatched human safety and project speed across shipyards, offshore assets, and storage tanks.
10QX is a next-generation robotic coating applicator that delivers precision coating to large-scale industrial and maritime assets — maximizing productivity, enabling higher coating quality, and improving operational safety.
Consistent speed: up to 600 m²/h (6458 ft²/h) (depending on the type of paint and asset substrate)
Min. tank external diameter: 8m
Min. tank internal diameter: 10m
Lane switch duration: 10s
Wheels: 2
Modularity: yes (crawler and QPS are split systems)
Ultrasonic distance sensor for extra safety: yes
Consistent speed: up to 250m²/h (2690ft²/h) (depending on the type of paint and asset substrate)
Min. tank external diameter: 17m
Min. tank internal diameter: 30m
Lane switch duration: 22s
Wheels: 4
Modularity: no
Ultrasonic distance sensor for extra safety: no
Engineered to maintain uniform coating on curved and complex surfaces, the 10QX is suitable for a wide range of large industrial markets:
Don’t see your asset listed? Our technology is designed to adapt.
Get in touch to discover how the 10QX or our other solutions can work for your application.

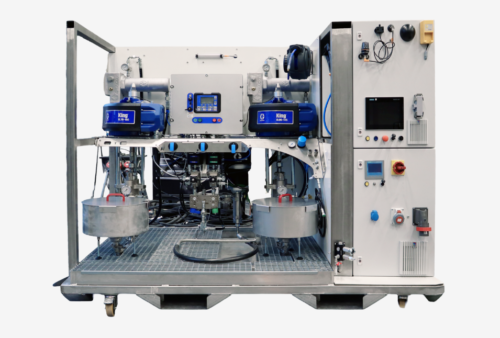

The Qlayers Paint System (QPS) serves as the control center of the coating setup.
It integrates a modified 2K paint pump that precisely maintains both paint pressure and temperature. This ensures a stable, consistent flow of paint to the spray gun.
Operators can configure and monitor all coating parameters directly through the integrated Human Machine Interface (HMI). The interface also supports new operators with guided workflows.
For projects in challenging climates, the system can be equipped with heating or cooling options — guaranteeing reliable performance for both anti-corrosion and anti-fouling coatings.
Next level quality control reporting, including real-time process feedback for optimal performance and quality insurance. Measuring:
10QX combines high performance with environmental protection.
Its patented spray-shielding system prevents overspray at the source, achieving:
Remote operation keeps crews safely on the ground, reducing work-at-height exposure by 80%.
With 10QX, coating operations are cleaner, safer, and more efficient, advancing the next generation of asset maintenance.
With every 10QX, you receive a fully integrated system, including essential services to get your operation up and running efficiently from day one:
Additional services available:
Watch the power of the 10QX in action.
Experience efficient low-overspray robotic coating delivered with consistency, control, and safety.
Case studies are available upon request.
Do you need a reliable automated coating solution for your coating projects? Contact us to see how we can help your business grow.
Marcos Leis
Technology & Innovation Manager
C3 Engenharia e Soluções
At the start of the project, it takes about half a day to a full day for mobilization, depending on the complexity of the rigging system and accessibility of the tank pit.
Once the robot is set up, it takes roughly only 30 minutes each day to start the system and another 30 minutes to flush at the end of a shift, depending on the proficiency of the operators.
The current hood can cover from 200 to 2000m² without cleaning, after which it takes 5 minutes to clean. The exact runtime depends on the type of paint: high-density coatings produce little overspray, allowing for maximum runtime, while low-density (lighter) coatings generate more overspray, requiring more frequent cleaning.
A filter change might also be needed, depending on filter size and paint particles. Subject to the object’s layout and dimensions, breaks to move the crawler past obstacles and reposition the trailer might be required.
For the rest, you can continue the coating application process without breaks. It is important to note that the robot is semi-automatic; thus, robot operators need to be present at all times.
The whole system is CE-certified and produced according to ISO9001 standards, and the pump is ATEX-certified.
Additionally, the system has multiple emergency stop buttons (on the trailer and remote control), and a gas sensor shuts it down entirely if the level exceeds 10% of the LEL.
The crawler is attached to the surface with three permanent magnets, making it fail-proof against an electrical outage. A fall arrest system serves as a backup in the unlikely event the crawler detaches from the wall.
The main operations require three people:
In addition, we recommend a fourth person to supervise and coordinate all activities.
Qlayers and our service partners offer a variety of services along with the 10QX robot, such as:
Details on services and corresponding terms are provided on request.
We recently established our novel rental business for project-based attainment of robots available within the EU. For other regions, the availability to rent depends on the respective distributor. We are happy to provide further details on request at sales@qlayers.com.
The 10Q robot remains fully functional and continues to be supported. Qlayers will provide service and maintenance in line with your current agreement, ensuring smooth operation and reliability.
If you’re interested in upgrading your existing unit, our team can also guide you through the available options based on your setup and needs. Please contact us at sales@qlayers.com
If you are already familiar with operating the 10Q, a one-day training will be sufficient to ensure you are fully prepared to operate the 10QX with confidence.
